INDUCTOR POWER

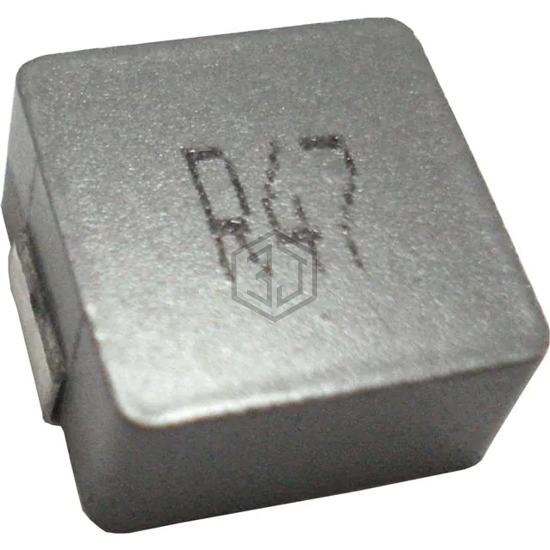

AMMA000505301R5MV1 is a Fixed Inductors manufactured by Chilisin Electronics. INDUCTOR POWER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.2 A.
In Stock: 1,305
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.2 A |
| Current - Saturation (Isat) | 11A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.216" L x 0.204" W (5.49mm x 5.18mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for AMMA000505301R5MV1 and get a quote within 24 hours.
