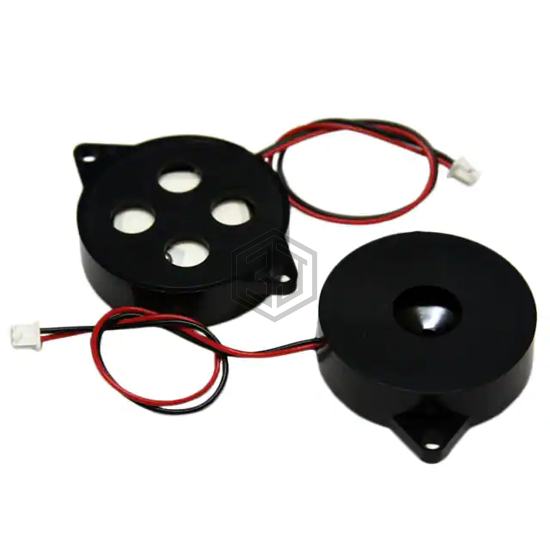

BUZZER PIEZO 18V 31.6MM FLANGE
CT31P-30W520-1 is a Alarms, Buzzers, and Sirens manufactured by Challenge Electronics. BUZZER PIEZO 18V 31.6MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 18 V, current - supply 10mA.
In Stock: 119
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 18 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 5.2kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 120dB @ 18V, 10cm |
| Current - Supply | 10mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.244" Dia (31.60mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
Submit your RFQ for CT31P-30W520-1 and get a quote within 24 hours.
