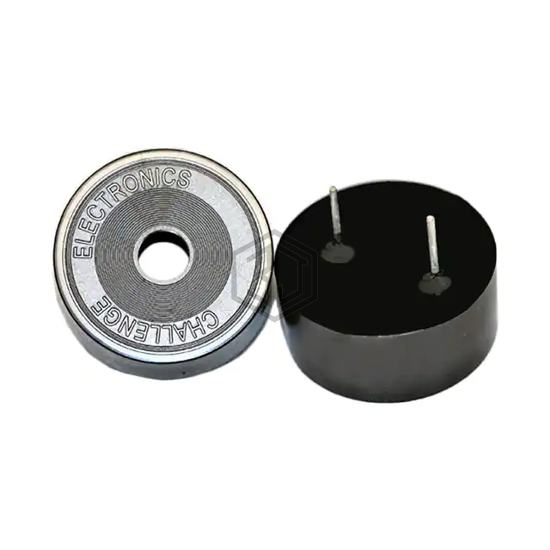

BUZZER PIEZO 12V 30MM TH
CT30P-30T260-1X is a Alarms, Buzzers, and Sirens manufactured by Challenge Electronics. BUZZER PIEZO 12V 30MM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 12 V, current - supply 10mA.
In Stock: 1,877
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 2.6kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 103dB @ 12V, 10cm |
| Current - Supply | 10mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
Submit your RFQ for CT30P-30T260-1X and get a quote within 24 hours.
