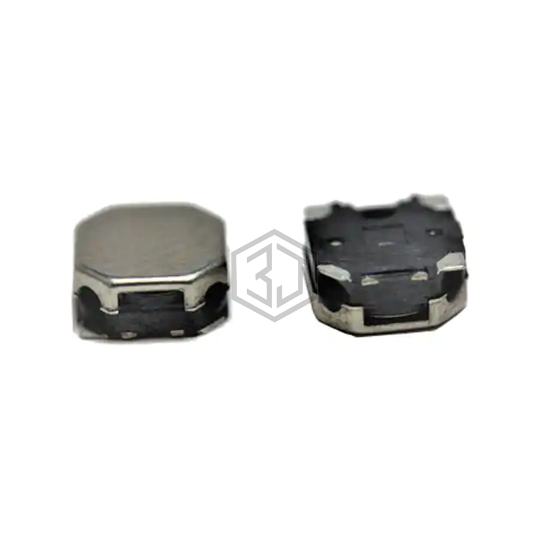

BUZZER MAGNETIC 3V 5.5X5.5MM SMD
CT05E-04S310-1 is a Alarms, Buzzers, and Sirens manufactured by Challenge Electronics. BUZZER MAGNETIC 3V 5.5X5.5MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 3 V, current - supply 120mA.
In Stock: 1,891
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 2.5 ~ 4.5V |
| Frequency | 3.1kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 3V, 10cm |
| Current - Supply | 120mA |
| Port Location | Side |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.217" L x 0.217" W (5.50mm x 5.50mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Submit your RFQ for CT05E-04S310-1 and get a quote within 24 hours.
