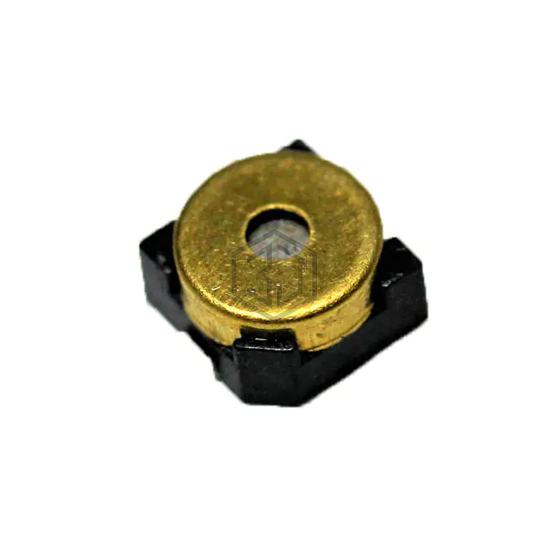

BUZZER MAGNETIC 3V 3.2X3.2MM SMD
CT03E-04S400-1B is a Alarms, Buzzers, and Sirens manufactured by Challenge Electronics. BUZZER MAGNETIC 3V 3.2X3.2MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 70°C, voltage - rated 3 V, current - supply 120mA.
In Stock: 355
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 2 ~ 4V |
| Frequency | 4kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 72dB @ 3V, 10cm |
| Current - Supply | 120mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.126" L x 0.126" W (3.20mm x 3.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for CT03E-04S400-1B and get a quote within 24 hours.
