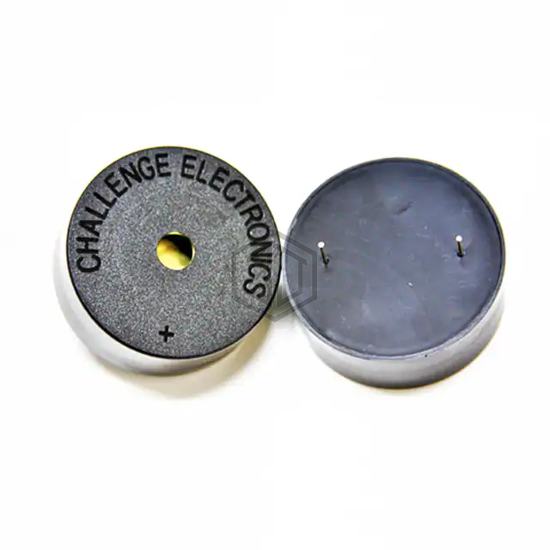

BUZZER PIEZO 12V 41.8MM TH
CI41P-20T280-C-1X is a Alarms, Buzzers, and Sirens manufactured by Challenge Electronics. BUZZER PIEZO 12V 41.8MM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 70°C, voltage - rated 12 V, current - supply 40mA.
In Stock: 1,835
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 1.5 ~ 20V |
| Frequency | 2.8kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 100dB @ 12V, 30cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.646" Dia (41.80mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
Submit your RFQ for CI41P-20T280-C-1X and get a quote within 24 hours.
