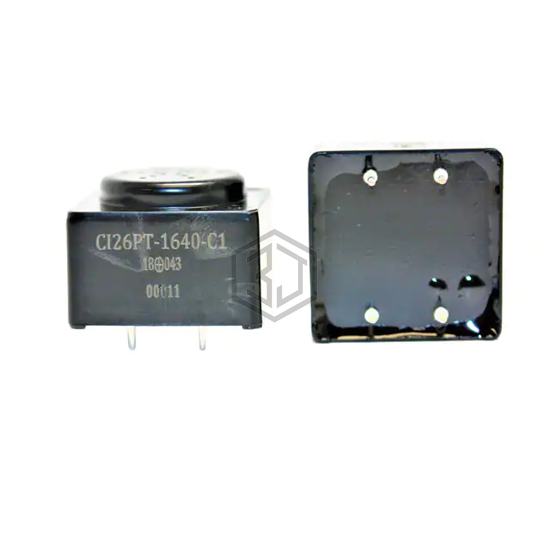

BUZZER PIEZO 12V 26X26MM TH
CI26P-16T40-C-1X is a Alarms, Buzzers, and Sirens manufactured by Challenge Electronics. BUZZER PIEZO 12V 26X26MM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 12 V, current - supply 60mA.
In Stock: 400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 8 ~ 16V |
| Frequency | 400Hz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 12V, 10cm |
| Current - Supply | 60mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 105°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.024" L x 1.024" W (26.00mm x 26.00mm) |
| Height - Seated (Max) | 0.776" (19.70mm) |
Submit your RFQ for CI26P-16T40-C-1X and get a quote within 24 hours.
