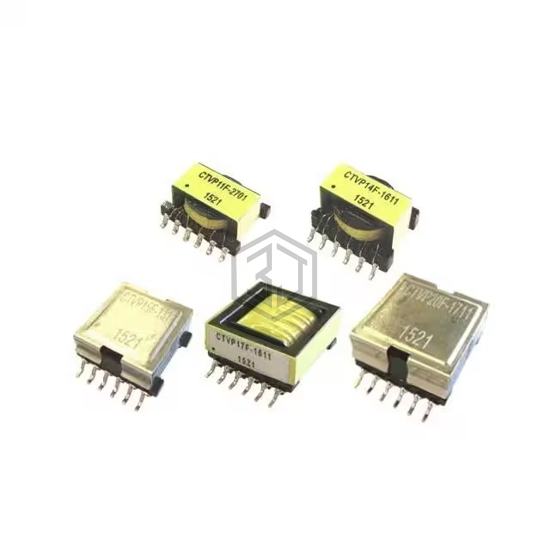

132UH SMD 6 WINDING TRANSFORMER
CTVP15F-1311 is a Fixed Inductors manufactured by Central Technologies. 132UH SMD 6 WINDING TRANSFORMER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 12-SMD, Gull Wing, current rating (amps) 130 mA.
In Stock: 9,094
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 132 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 130 mA |
| Current - Saturation (Isat) | 70mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 970mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-SMD, Gull Wing |
| Supplier Device Package | 12-SMD |
| Size / Dimension | - |
| Height - Seated (Max) | 0.335" (8.50mm) |
