HIGH CURRENT SMD POWER INDUCTOR

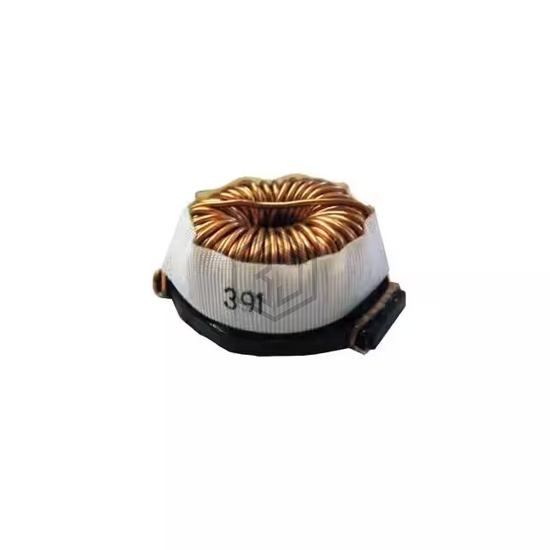

CTTSMD2120F-1R8M is a Fixed Inductors manufactured by Central Technologies. HIGH CURRENT SMD POWER INDUCTOR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, package / case Nonstandard, size / dimension 1.201" L x 1.098" W (30.50mm x 27.90mm).
In Stock: 9,543
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron |
| Inductance | 1.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 58.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.201" L x 1.098" W (30.50mm x 27.90mm) |
| Height - Seated (Max) | 0.820" (20.83mm) |
Submit your RFQ for CTTSMD2120F-1R8M and get a quote within 24 hours.
