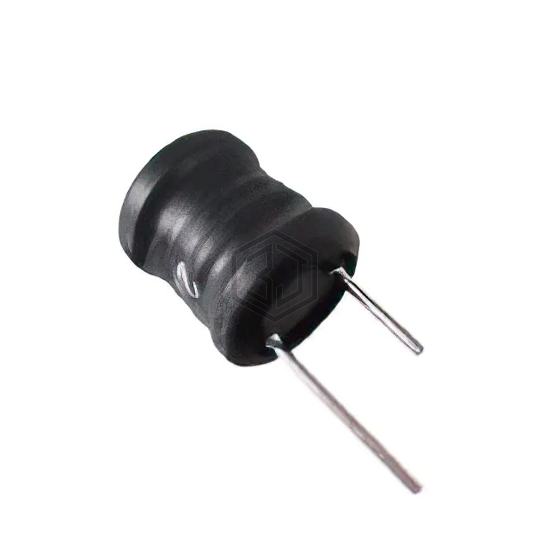

27000UH RADIAL FIXED INDUCTR
CTRL5480F-5-274K is a Fixed Inductors manufactured by Central Technologies. 27000UH RADIAL FIXED INDUCTR. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 60 mA.
In Stock: 484
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 270 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 60 mA |
| Current - Saturation (Isat) | 39mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 174Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 0.626" Dia (15.90mm) |
| Height - Seated (Max) | 0.701" (17.80mm) |
Submit your RFQ for CTRL5480F-5-274K and get a quote within 24 hours.
