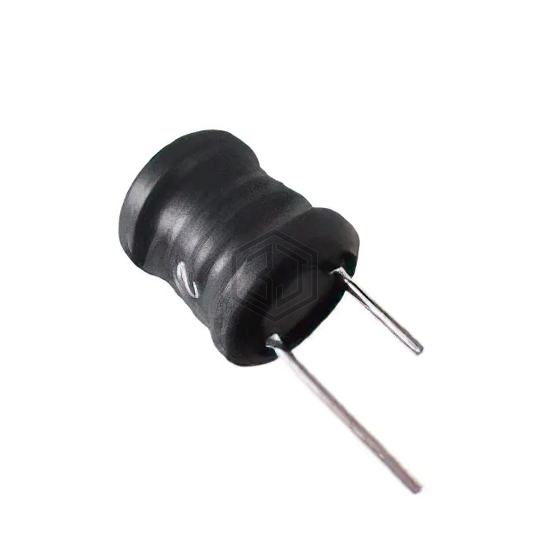

8.2UH RADIAL FIXED INDUCTOR
CTRL5480F-5-101K is a Fixed Inductors manufactured by Central Technologies. 8.2UH RADIAL FIXED INDUCTOR. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 4 A.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 4 A |
| Current - Saturation (Isat) | 2.1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 56mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 0.626" Dia (15.90mm) |
| Height - Seated (Max) | 0.701" (17.80mm) |
Submit your RFQ for CTRL5480F-5-101K and get a quote within 24 hours.
