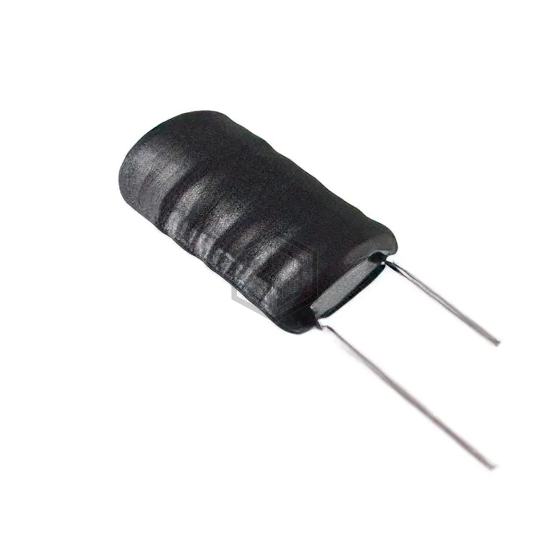

10UH RADIAL FIXED INDUCTOR
CTRL5480F-4-100K is a Fixed Inductors manufactured by Central Technologies. 10UH RADIAL FIXED INDUCTOR. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 2.6 A.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.6 A |
| Current - Saturation (Isat) | 8.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 31mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 0.449" Dia (11.40mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
Submit your RFQ for CTRL5480F-4-100K and get a quote within 24 hours.
