SMD SHLDED POWER INDUCTOR

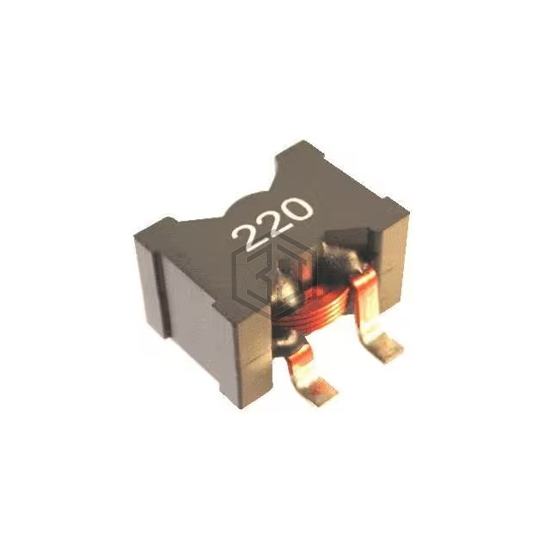

CTHFW2014F-220M is a Fixed Inductors manufactured by Central Technologies. SMD SHLDED POWER INDUCTOR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 2-SMD, Gull Wing, current rating (amps) 16 A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 16 A |
| Current - Saturation (Isat) | 13A |
| Shielding | Shielded |
| DC Resistance (DCR) | 9.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Gull Wing |
| Supplier Device Package | - |
| Size / Dimension | 0.886" L x 0.807" W (22.50mm x 20.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
