250UH AXIAL PWR LINE INDUCTOR

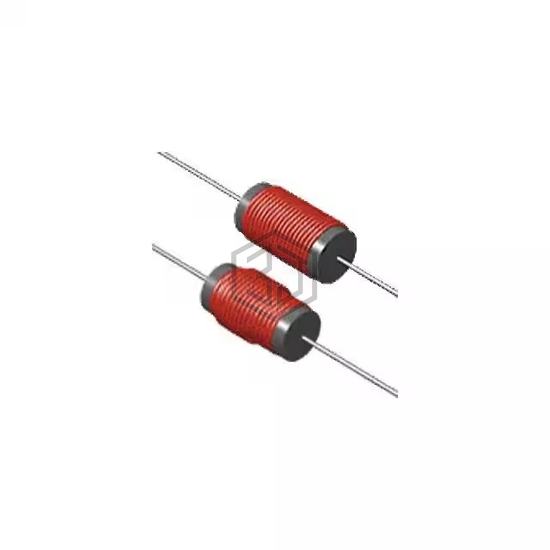

CTH9F-251M is a Fixed Inductors manufactured by Central Technologies. 250UH AXIAL PWR LINE INDUCTOR. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Axial, size / dimension 0.440" Dia x 1.250" L (11.18mm x 31.75mm).
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 250 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 2.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | Axial |
| Size / Dimension | 0.440" Dia x 1.250" L (11.18mm x 31.75mm) |
| Height - Seated (Max) | - |
