2.0 MH CMC COILS POWER SUPPLY

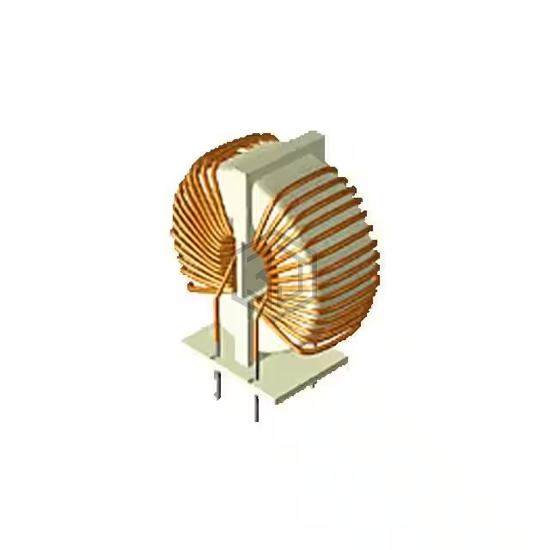

CTF2012SF-202M5R0 is a Common Mode Chokes manufactured by Central Technologies. 2.0 MH CMC COILS POWER SUPPLY. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case Radial, Vertical, 4 Leads (Open), size / dimension 1.240" L x 0.827" W (31.50mm x 21.00mm).
In Stock: 6,081
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | - |
| Current Rating (Max) | 5A |
| DC Resistance (DCR) (Max) | 45mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -25°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.240" L x 0.827" W (31.50mm x 21.00mm) |
| Height (Max) | 1.220" (31.00mm) |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
Submit your RFQ for CTF2012SF-202M5R0 and get a quote within 24 hours.
