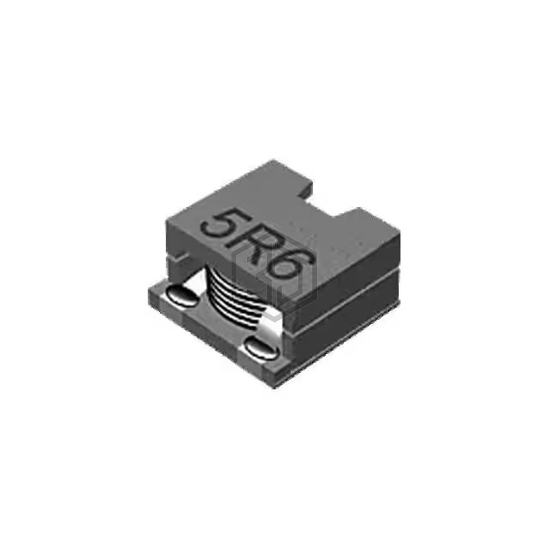

5.6UH SMD SHLDED POWER INDUCTOR
CTEP125HF-5R6 is a Fixed Inductors manufactured by Central Technologies. 5.6UH SMD SHLDED POWER INDUCTOR. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, package / case Nonstandard, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 1,515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 8.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 11.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -30°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.220" (5.60mm) |
Submit your RFQ for CTEP125HF-5R6 and get a quote within 24 hours.
