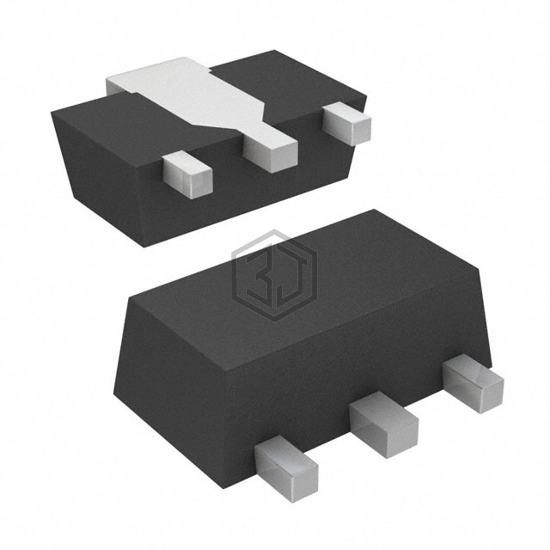

MOSFET N-CH 100V 2A SOT-89
CXDM1002N TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET N-CH 100V 2A SOT-89. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-243AA.
In Stock: 2,539
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 300mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 5 V |
| Vgs (Max) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 550 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-89 |
| Package / Case | TO-243AA |
Submit your RFQ for CXDM1002N TR PBFREE and get a quote within 24 hours.
