MOSFET N-CH 20V 100MA SOT523

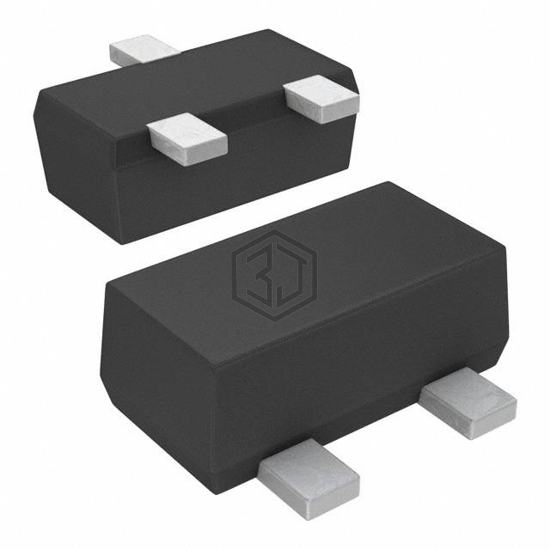

CMUDM7001 TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET N-CH 20V 100MA SOT523. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case SC-89, SOT-490.
In Stock: 3,963
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 10mA, 4V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.57 nC @ 4.5 V |
| Vgs (Max) | 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 9 pF @ 3 V |
| FET Feature | - |
| Power Dissipation (Max) | 250mW (Ta) |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-523 |
| Package / Case | SC-89, SOT-490 |
Submit your RFQ for CMUDM7001 TR PBFREE and get a quote within 24 hours.
