MOSFET P-CH 20V 860MA SOT563

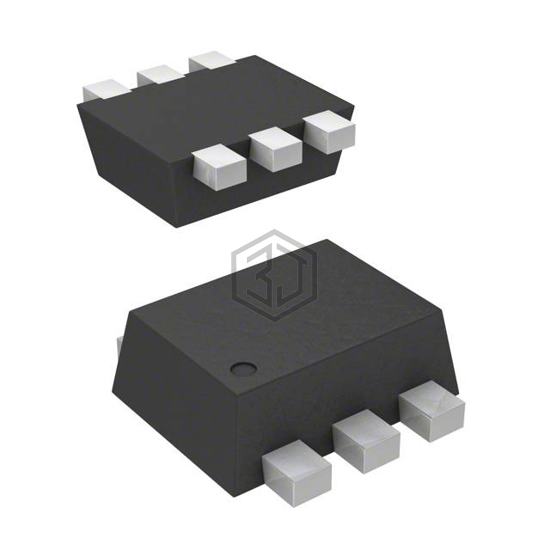

CMLDM8120G TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET P-CH 20V 860MA SOT563. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case SOT-563, SOT-666.
In Stock: 1,449
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 860mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 950mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.56 nC @ 4.5 V |
| Vgs (Max) | 8V |
| Input Capacitance (Ciss) (Max) @ Vds | 200 pF @ 16 V |
| FET Feature | - |
| Power Dissipation (Max) | 350mW (Ta) |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-563 |
| Package / Case | SOT-563, SOT-666 |
Submit your RFQ for CMLDM8120G TR PBFREE and get a quote within 24 hours.
