SPMA 60W 24VDC 2.5A CONFORMAL CO

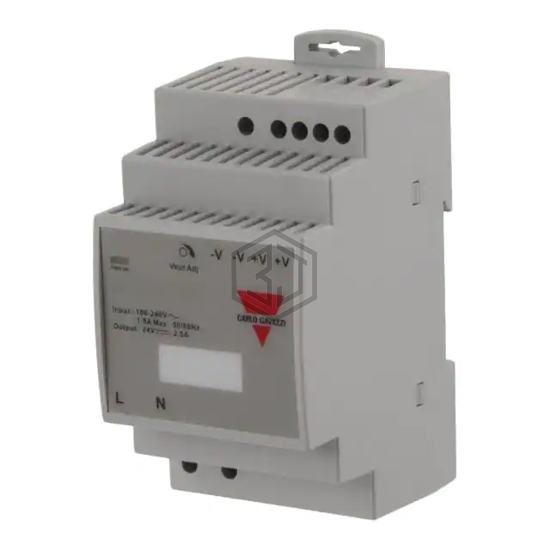

SPMA24601SCC is a Industrial, DIN Rail Power Supplies manufactured by Carlo Gavazzi Inc.. SPMA 60W 24VDC 2.5A CONFORMAL CO. Key specifications: operating temperature -30°C ~ 70°C (With Derating), current - output (max) 2.5A, size / dimension 2.50" L x 2.10" W x 3.60" H (63.5mm x 53.3mm x 91.4mm), number of outputs 1.
In Stock: 1,990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 350V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 60W |
| Voltage - Isolation | 4 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 2.50" L x 2.10" W x 3.60" H (63.5mm x 53.3mm x 91.4mm) |
| Approval Agency | CE |
| Standard Number | 62368-1; UL 508 |
