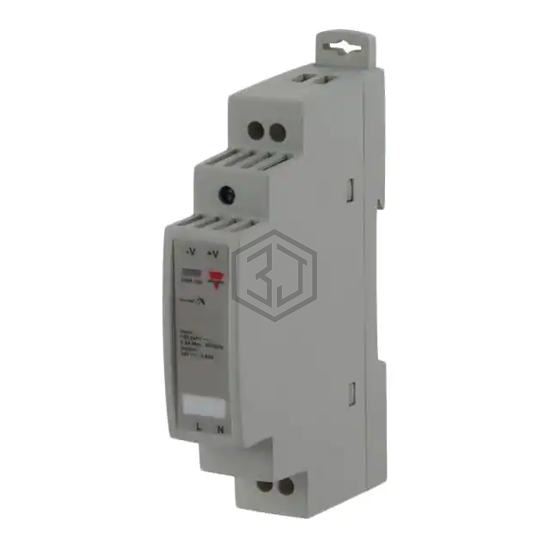

SPMA 15W 12VDC 1.25A
SPMA12151 is a Industrial, DIN Rail Power Supplies manufactured by Carlo Gavazzi Inc.. SPMA 15W 12VDC 1.25A. Key specifications: operating temperature -30°C ~ 70°C (With Derating), current - output (max) 1.25A, size / dimension 2.50" L x 0.70" W x 3.60" H (63.5mm x 17.8mm x 91.4mm), number of outputs 1.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 350V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 15W |
| Voltage - Isolation | 4 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 83% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 2.50" L x 0.70" W x 3.60" H (63.5mm x 17.8mm x 91.4mm) |
| Approval Agency | CE |
| Standard Number | 62368-1; UL 508 |
