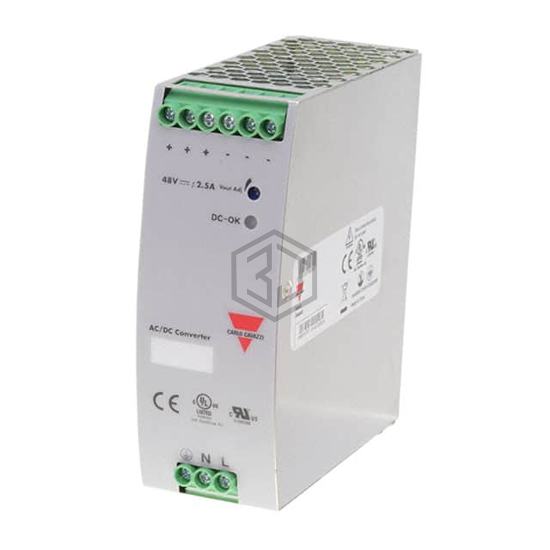

AC/DC CONVERTER 120W 48VDC
SPDM481201 is a Industrial, DIN Rail Power Supplies manufactured by Carlo Gavazzi Inc.. AC/DC CONVERTER 120W 48VDC. Key specifications: operating temperature -20°C ~ 70°C (With Derating), current - output (max) 2.5A, size / dimension 4.68" L x 1.77" W x 4.88" H (119.0mm x 45.0mm x 124.0mm), number of outputs 1.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | 127V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 120W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 4.68" L x 1.77" W x 4.88" H (119.0mm x 45.0mm x 124.0mm) |
| Approval Agency | CE, cULus, cURus |
| Standard Number | - |
Submit your RFQ for SPDM481201 and get a quote within 24 hours.
