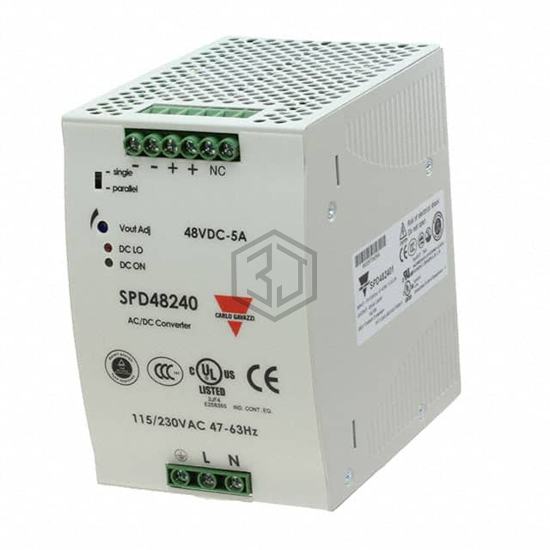

AC/DC CONVERTER 48V 240W
SPD482401 is a Industrial, DIN Rail Power Supplies manufactured by Carlo Gavazzi Inc.. AC/DC CONVERTER 48V 240W. Key specifications: operating temperature -40°C ~ 71°C (With Derating), current - output (max) 5A, size / dimension 4.59" L x 3.29" W x 4.90" H (116.6mm x 83.5mm x 124.5mm), number of outputs 1.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 132 VAC, 180 ~ 264 VAC |
| DC Voltage - Input (Min) | 210V |
| DC Voltage - Input (Max) | 375V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 240W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 71°C (With Derating) |
| Features | Adjustable Output, IP20, PFC, Universal Input |
| Size / Dimension | 4.59" L x 3.29" W x 4.90" H (116.6mm x 83.5mm x 124.5mm) |
| Approval Agency | CCC, CE, cULus, cURus, TUV |
| Standard Number | - |
Submit your RFQ for SPD482401 and get a quote within 24 hours.
