AC/DC CONVERTER 24V 960W

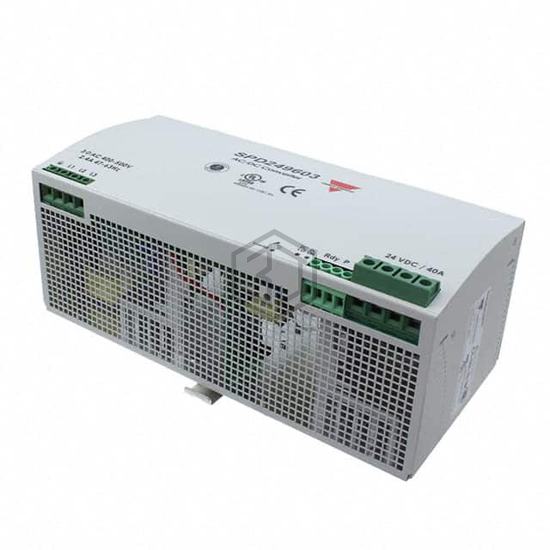

SPD249603 is a Industrial, DIN Rail Power Supplies manufactured by Carlo Gavazzi Inc.. AC/DC CONVERTER 24V 960W. Key specifications: operating temperature -40°C ~ 71°C (With Derating), current - output (max) 40A, size / dimension 10.86" L x 4.41" W x 4.97" H (275.8mm x 112.0mm x 126.2mm), number of outputs 1.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 340 ~ 575 VAC (3 Phase) |
| DC Voltage - Input (Min) | 480V |
| DC Voltage - Input (Max) | 820V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 960W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 92% |
| Operating Temperature | -40°C ~ 71°C (With Derating) |
| Features | Adjustable Output, IP20, PFC |
| Size / Dimension | 10.86" L x 4.41" W x 4.97" H (275.8mm x 112.0mm x 126.2mm) |
| Approval Agency | CE, cULus, TUV |
| Standard Number | - |
