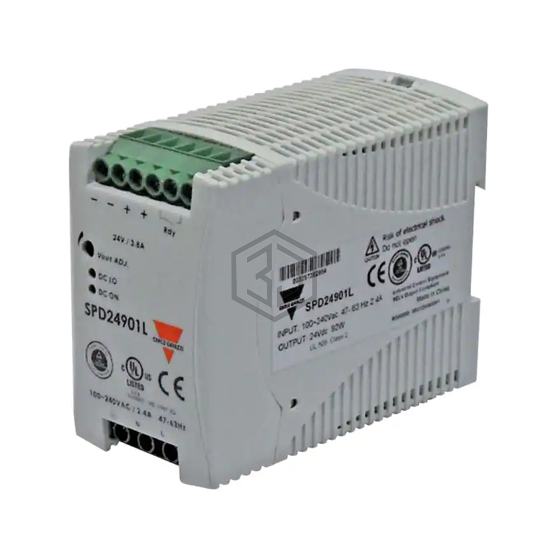

AC/DC CONVERTER 24V 91W
SPD24901L is a Industrial, DIN Rail Power Supplies manufactured by Carlo Gavazzi Inc.. AC/DC CONVERTER 24V 91W. Key specifications: operating temperature -25°C ~ 71°C (With Derating), current - output (max) 3.8A, size / dimension 4.49" L x 2.13" W x 3.54" H (114.0mm x 54.0mm x 90.0mm), number of outputs 1.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 375V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3.8A |
| Power (Watts) | 91W |
| Voltage - Isolation | 3 kV |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 85% |
| Operating Temperature | -25°C ~ 71°C (With Derating) |
| Features | Adjustable Output, IP20, PFC, Universal Input |
| Size / Dimension | 4.49" L x 2.13" W x 3.54" H (114.0mm x 54.0mm x 90.0mm) |
| Approval Agency | CE, cULus, TUV |
| Standard Number | - |
Submit your RFQ for SPD24901L and get a quote within 24 hours.
