AC/DC CONVERTER 24V 101W

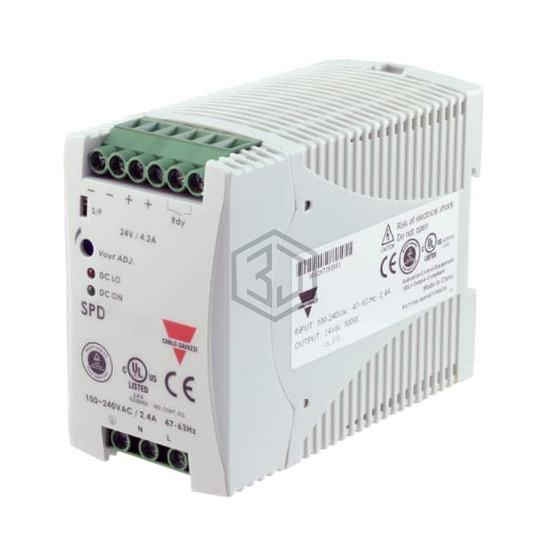

SPD241001 is a Industrial, DIN Rail Power Supplies manufactured by Carlo Gavazzi Inc.. AC/DC CONVERTER 24V 101W. Key specifications: operating temperature -35°C ~ 71°C (With Derating), current - output (max) 4.2A, size / dimension 4.49" L x 1.59" W x 3.54" H (114.0mm x 40.5mm x 90.0mm), number of outputs 1.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 375V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 4.2A |
| Power (Watts) | 101W |
| Voltage - Isolation | 3 kV |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 86% |
| Operating Temperature | -35°C ~ 71°C (With Derating) |
| Features | Adjustable Output, IP20, PFC, Universal Input |
| Size / Dimension | 4.49" L x 1.59" W x 3.54" H (114.0mm x 40.5mm x 90.0mm) |
| Approval Agency | CE, cULus, TUV |
| Standard Number | - |
