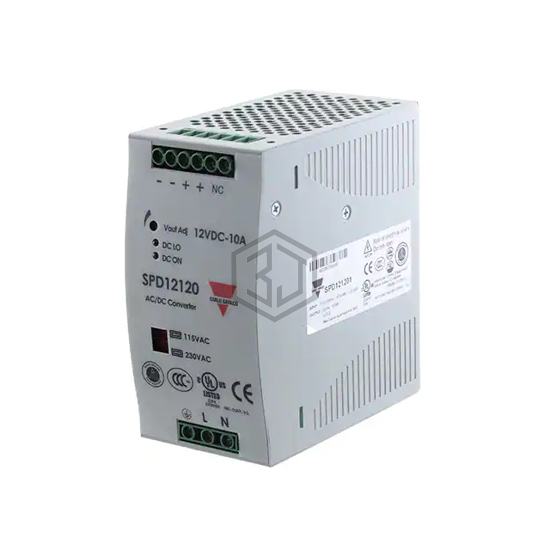

AC/DC CONVERTER 12V 120W
SPD121201 is a Industrial, DIN Rail Power Supplies manufactured by Carlo Gavazzi Inc.. AC/DC CONVERTER 12V 120W. Key specifications: operating temperature -35°C ~ 71°C (With Derating), current - output (max) 10A, size / dimension 4.41" L x 2.54" W x 4.88" H (111.9mm x 64.4mm x 124.0mm), number of outputs 1.
In Stock: 33
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 132 VAC, 180 ~ 264 VAC |
| DC Voltage - Input (Min) | 210V |
| DC Voltage - Input (Max) | 375V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 120W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -35°C ~ 71°C (With Derating) |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 4.41" L x 2.54" W x 4.88" H (111.9mm x 64.4mm x 124.0mm) |
| Approval Agency | CCC, CE, cULus, TUV |
| Standard Number | - |
Submit your RFQ for SPD121201 and get a quote within 24 hours.
