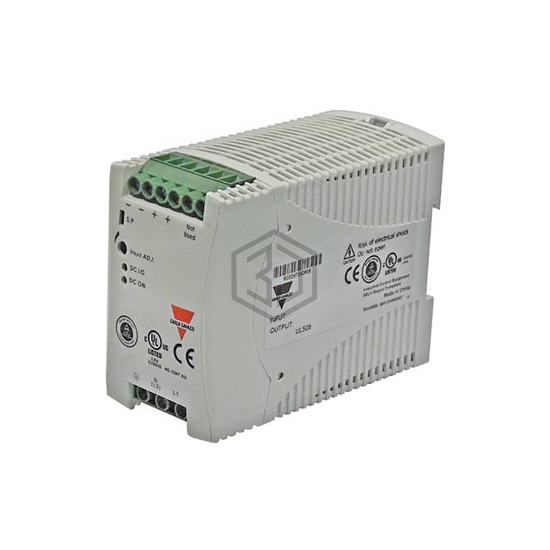

AC/DC CONVERTER 12V 101W
SPD121002 is a Industrial, DIN Rail Power Supplies manufactured by Carlo Gavazzi Inc.. AC/DC CONVERTER 12V 101W. Key specifications: operating temperature -25°C ~ 71°C (With Derating), current - output (max) 8.4A, size / dimension 4.49" L x 2.13" W x 3.54" H (114.0mm x 54.0mm x 90.0mm), number of outputs 1.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 340 ~ 575 VAC (2 Phase) |
| DC Voltage - Input (Min) | 480V |
| DC Voltage - Input (Max) | 820V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 8.4A |
| Power (Watts) | 101W |
| Voltage - Isolation | 3 kV |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 86% |
| Operating Temperature | -25°C ~ 71°C (With Derating) |
| Features | Adjustable Output, IP20, PFC |
| Size / Dimension | 4.49" L x 2.13" W x 3.54" H (114.0mm x 54.0mm x 90.0mm) |
| Approval Agency | CE, cULus, TUV |
| Standard Number | - |
Submit your RFQ for SPD121002 and get a quote within 24 hours.
