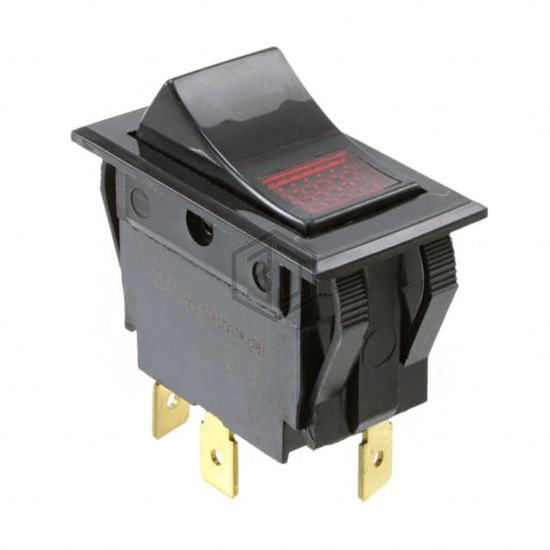

SWITCH ROCKER SPST 15A 125V
LTILA51-6S-BL-RC-NBL/125N is a Rocker Switches manufactured by Carling Technologies. SWITCH ROCKER SPST 15A 125V. Key specifications: mounting type Panel Mount, Snap-In, voltage rating - dc 28 V, current rating (amps) 15A (AC/DC), termination style Quick Connect - 0.250" (6.3mm).
In Stock: 2,477
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Snap-In |
| Circuit | SPST |
| Switch Function | On-Off |
| Current Rating (Amps) | 15A (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Concave (Curved) - Illuminated |
| Color - Actuator/Cap | Black |
| Actuator Marking | No Marking |
| Illumination Type, Color | Neon, Red |
| Illumination Voltage (Nominal) | 125 VAC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Ingress Protection | - |
| Features | - |
| Panel Cutout Dimensions | Rectangular - 36.83mm x 21.08mm |
| Operating Temperature | - |
Submit your RFQ for LTILA51-6S-BL-RC-NBL/125N and get a quote within 24 hours.
