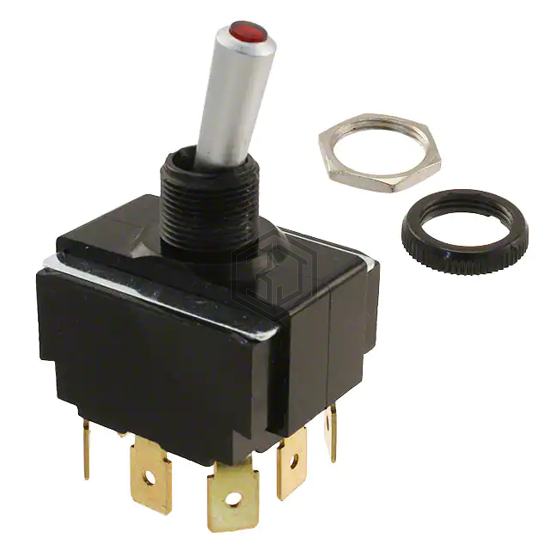

SWITCH TOGGLE DPDT 15A 125V
LT-2561-601-012 is a Toggle Switches manufactured by Carling Technologies. SWITCH TOGGLE DPDT 15A 125V. Key specifications: mounting type Panel Mount, operating temperature 0°C ~ 85°C, voltage rating - dc 28 V, current rating (amps) 15A (AC/DC).
In Stock: 575
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount |
| Circuit | DPDT |
| Switch Function | On-Off-On |
| Current Rating (Amps) | 15A (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Standard Round |
| Actuator Length | 18.16mm |
| Illumination | Illuminated |
| Illumination Type, Color | Incandescent, Red |
| Illumination Voltage (Nominal) | 12 VAC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Panel Cutout Dimensions | Circular - 12.70mm Dia |
| Bushing Thread | 15/32-32 |
| Ingress Protection | - |
| Features | Sealed |
| Operating Temperature | 0°C ~ 85°C |
Submit your RFQ for LT-2561-601-012 and get a quote within 24 hours.
