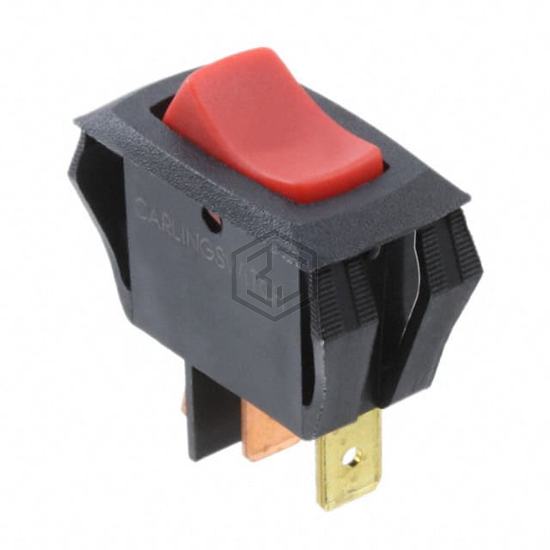

SWITCH ROCKER SPST 10A 30V
LRA511-RS-B/012V is a Rocker Switches manufactured by Carling Technologies. SWITCH ROCKER SPST 10A 30V. Key specifications: mounting type Panel Mount, Snap-In, operating temperature 0°C ~ 85°C, voltage rating - dc 30 V, current rating (amps) 10A (DC).
In Stock: 277
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Snap-In |
| Circuit | SPST |
| Switch Function | On-Off |
| Current Rating (Amps) | 10A (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 30 V |
| Actuator Type | Concave (Curved) - Illuminated |
| Color - Actuator/Cap | Red |
| Actuator Marking | No Marking |
| Illumination Type, Color | Incandescent, Red |
| Illumination Voltage (Nominal) | 12 VAC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Ingress Protection | - |
| Features | - |
| Panel Cutout Dimensions | Rectangular - 28.58mm x 13.97mm |
| Operating Temperature | 0°C ~ 85°C |
Submit your RFQ for LRA511-RS-B/012V and get a quote within 24 hours.
