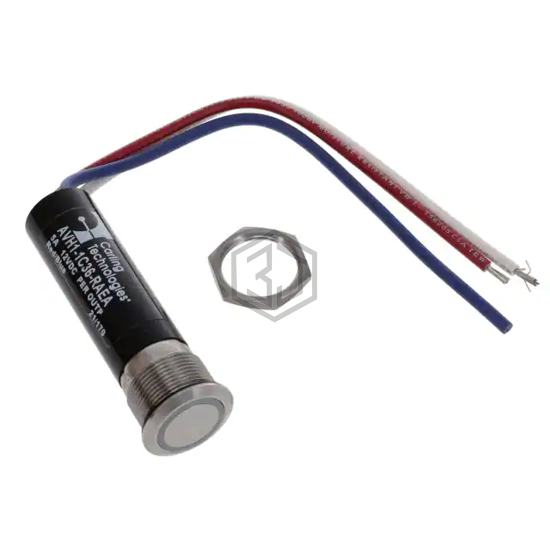

SWITCH PB ANTI-VANDAL 5A/OUTPUT
AVH1-1C36-RAEA is a Pushbutton Switches manufactured by Carling Technologies. SWITCH PB ANTI-VANDAL 5A/OUTPUT. Key specifications: mounting type Panel Mount, Front, operating temperature -30°C ~ 70°C, voltage rating - dc 12 V, current rating (amps) 5A (DC).
In Stock: 724
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 5A (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 12 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Red/Blue |
| Illumination Voltage (Nominal) | - |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 19.00mm Dia |
| Operating Temperature | -30°C ~ 70°C |
Submit your RFQ for AVH1-1C36-RAEA and get a quote within 24 hours.
