3J LIMITED
WTB2-W4-22
30A FEED THRU 2-2 GREY 6MM

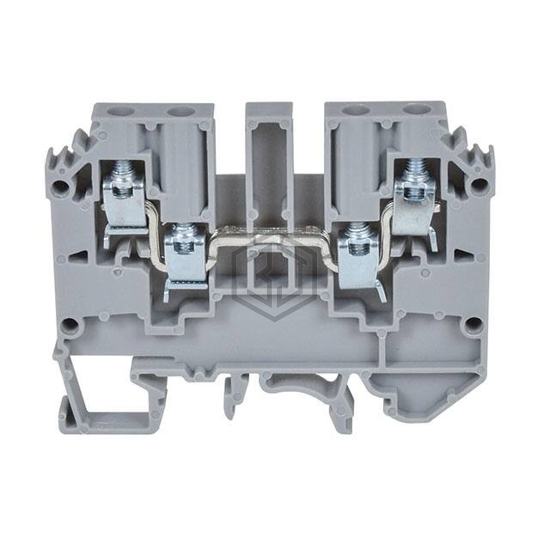

WTB2-W4-22 is a Terminal Blocks - Din Rail, Channel manufactured by c3controls. 30A FEED THRU 2-2 GREY 6MM. Key specifications: color Gray, termination style Screw, number of positions 4.
In Stock: 100
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Feed Through |
| Disconnect Type | - |
| Number of Positions | 4 |
| Number of Levels | 2 |
| Terminal - Width | 6.0mm |
| Termination Style | Screw |
| Current - IEC | 32 A |
| Voltage - IEC | 600V |
| Current - UL | 35 A |
| Voltage - UL | 600V |
| Wire Gauge or Range - AWG | 10-22 AWG |
| Wire Gauge or Range - mm² | 0.5-4mm² |
| Features | - |
| Color | Gray |
| Fuse Type | - |
Frequently Asked Questions
WTB2-W4-22 is a Terminal Blocks - Din Rail, Channel manufactured by c3controls. 30A FEED THRU 2-2 GREY 6MM
The color of WTB2-W4-22 is Gray.
The termination type of WTB2-W4-22 is Screw.
The number of positions of WTB2-W4-22 is 4.
