3J LIMITED

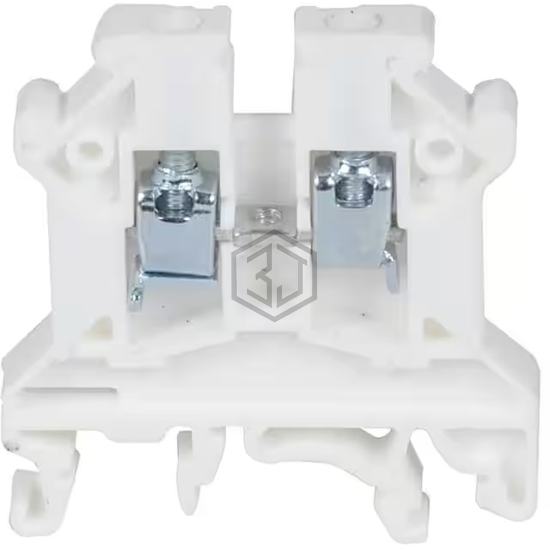

WTB2-W2-WH
20A FEED THRU WHITE 5MM
WTB2-W2-WH is a Terminal Blocks - Din Rail, Channel manufactured by c3controls. 20A FEED THRU WHITE 5MM. Key specifications: color White, termination style Screw, number of positions 2.
In Stock: 99
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Feed Through |
| Disconnect Type | - |
| Number of Positions | 2 |
| Number of Levels | 1 |
| Terminal - Width | 5.0mm |
| Termination Style | Screw |
| Current - IEC | 24 A |
| Voltage - IEC | 750V |
| Current - UL | 25 A |
| Voltage - UL | 600V |
| Wire Gauge or Range - AWG | 14-22 AWG |
| Wire Gauge or Range - mm² | 0.5-4mm² |
| Features | - |
| Color | White |
| Fuse Type | - |
Frequently Asked Questions
WTB2-W2-WH is a Terminal Blocks - Din Rail, Channel manufactured by c3controls. 20A FEED THRU WHITE 5MM
The color of WTB2-W2-WH is White.
The termination type of WTB2-W2-WH is Screw.
The number of positions of WTB2-W2-WH is 2.
