MPC506 16-CHANNEL SINGLE-ENDED I

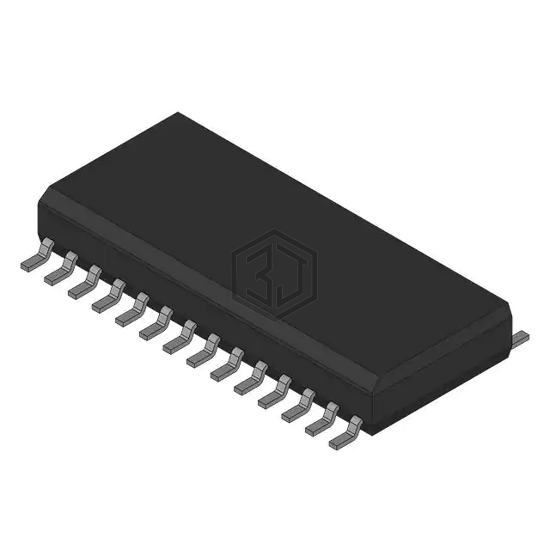

MPC506AUG4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Burr Brown. MPC506 16-CHANNEL SINGLE-ENDED I. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 28-SOIC (0.295", 7.50mm Width), number of circuits 1.
In Stock: 1,549
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.5kOhm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 200ns, 250ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 50pF |
| Current - Leakage (IS(off)) (Max) | 500pA (Typ) |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MPC506AU | Texas Instruments | IC MULTIPLEXER 1X16 28SOIC | 100% | View |
| DG406DW-E3 | Vishay Siliconix | IC MULTIPLEXER 16X1 28SOIC | 93% | View |
| MAX306EUI+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 16X1 28TSSOP | 93% | View |
| DG407DYZ-T | Renesas Electronics America Inc | IC MULTIPLEXER DUAL 8X1 28SOIC | 82% | View |
| DG308BDY-E3 | Vishay Siliconix | IC SWITCH QUAD CMOS 16SOIC | 78% | View |
| MAX4583EUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE SPDT 16TSSOP | 69% | View |
Submit your RFQ for MPC506AUG4 and get a quote within 24 hours.
