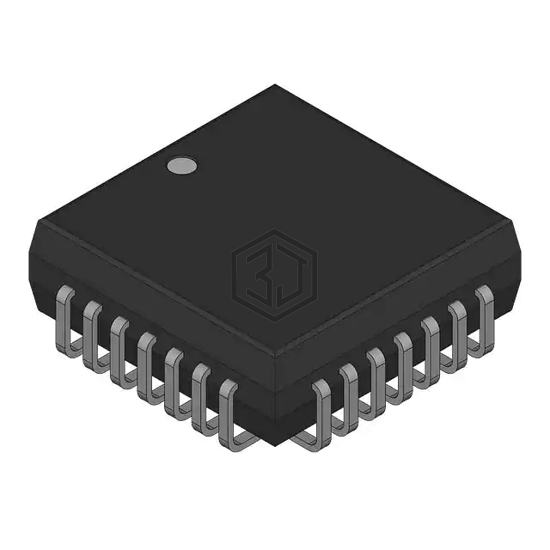

DAC7725 12-BIT QUAD VOLTAGE OUTP
DAC7725NB is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Burr Brown. DAC7725 12-BIT QUAD VOLTAGE OUTP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 28-LCC (J-Lead).
In Stock: 28,699
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 4 |
| Settling Time | 10µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC7625U/1K | Texas Instruments | IC DAC 12BIT V-OUT 28SOIC | 100% | View |
| DAC7614U/1K | Texas Instruments | IC DAC 12BIT V-OUT 16SOIC | 100% | View |
| DAC8413FPCZ | Analog Devices Inc. | IC DAC 12BIT V-OUT 28PLCC | 100% | View |
| MAX5250AEAP+T | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT 20SSOP | 98% | View |
| MAX5235AEUB+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 10UMAX | 92% | View |
| TLV5620ID | Texas Instruments | IC DAC 8BIT V-OUT 14SOIC | 88% | View |
Submit your RFQ for DAC7725NB and get a quote within 24 hours.
