DAC7724 12-BIT QUAD VOLTAGE OUTP

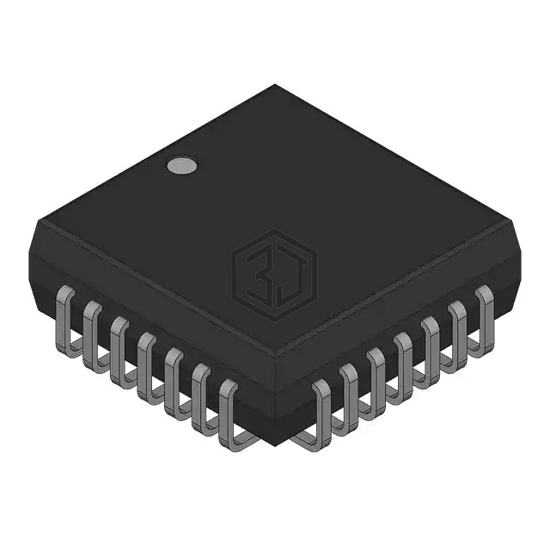

DAC7724NB is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Burr Brown. DAC7724 12-BIT QUAD VOLTAGE OUTP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 28-LCC (J-Lead).
In Stock: 293
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 4 |
| Settling Time | 10µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC7644EB/1K | Texas Instruments | IC DAC 16BIT V-OUT 48SSOP | 97% | View |
| TLC5620IDR | Texas Instruments | IC DAC 8BIT V-OUT 14SOIC | 95% | View |
| DAC7642VFBT | Texas Instruments | IC DAC 16BIT V-OUT 32LQFP | 89% | View |
| DAC7714U | Texas Instruments | IC DAC 12BIT V-OUT 16SOIC | 88% | View |
| AD5328BRUZ-REEL7 | Analog Devices Inc. | IC DAC 12BIT V-OUT 16TSSOP | 84% | View |
| AD5328BRUZ | Analog Devices Inc. | IC DAC 12BIT V-OUT 16TSSOP | 84% | View |
Submit your RFQ for DAC7724NB and get a quote within 24 hours.
