D/A CONVERTER, 1 FUNC, SERIAL IN

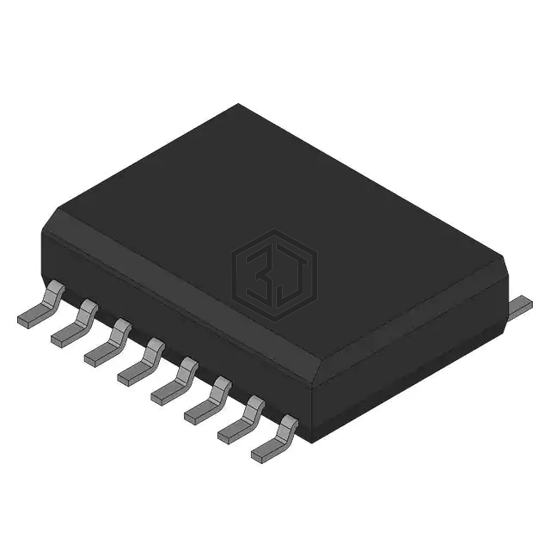

DAC7715UG4 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Burr Brown. D/A CONVERTER, 1 FUNC, SERIAL IN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 14.25V ~ 15.75V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 3,624
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 4 |
| Settling Time | 10µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD5725ARSZ-1500RL7 | Analog Devices Inc. | IC DAC 12BIT V-OUT 28SSOP | 88% | View |
| DAC7624UBG4 | Texas Instruments | IC DAC 12BIT V-OUT 28SOIC | 88% | View |
| AD5344BRUZ-REEL7 | Analog Devices Inc. | IC DAC 12BIT V-OUT 28TSSOP | 82% | View |
| DAC7616UG4 | Texas Instruments | IC DAC 12BIT V-OUT 16SOIC | 82% | View |
| AD5342BRUZ | Analog Devices Inc. | IC DAC 12BIT V-OUT 28TSSOP | 74% | View |
| LTC2606IDD-1#TRPBF | Analog Devices Inc. | IC DAC 16BIT V-OUT 10DFN | 63% | View |
Submit your RFQ for DAC7715UG4 and get a quote within 24 hours.
