DAC, PARALLEL, WORD INPUT

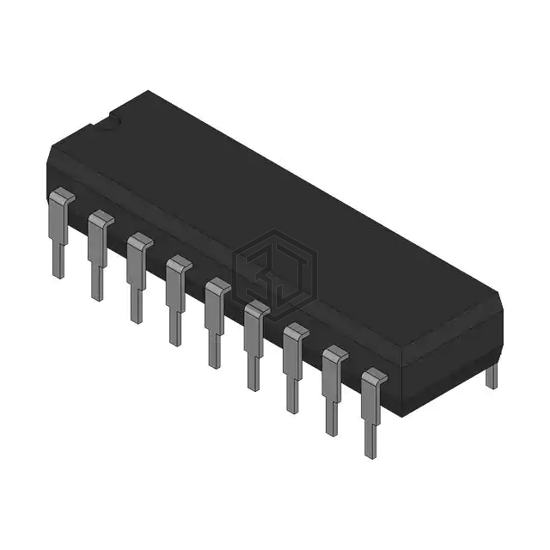

DAC7541AKP is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Burr Brown. DAC, PARALLEL, WORD INPUT. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V ~ 16V, package / case 18-DIP (0.300", 7.62mm).
In Stock: 1,451
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 1µs |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 5V ~ 16V |
| Voltage - Supply, Digital | 5V ~ 16V |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Architecture | Multiplying DAC, R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP |
| Mounting Type | Through Hole |
DAC7541AKP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MX7548JN+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 20DIP | 100% | View |
| MX7548BQ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 20CDIP | 100% | View |
| MX7548KN | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 20DIP | 100% | View |
| LTC1591-1IN#PBF | Analog Devices Inc. | IC DAC 14BIT A-OUT 28DIP | 99% | View |
| 5962-8967101LA | Analog Devices Inc. | IC DAC 12BIT CMOS DUAL 24CDIP | 93% | View |
| DAC8248FW | Analog Devices Inc. | DUAL 12-BIT DOUBLE-BUFFERED DAC | 93% | View |
Submit your RFQ for DAC7541AKP and get a quote within 24 hours.
