DAC, PARALLEL, WORD INPUT

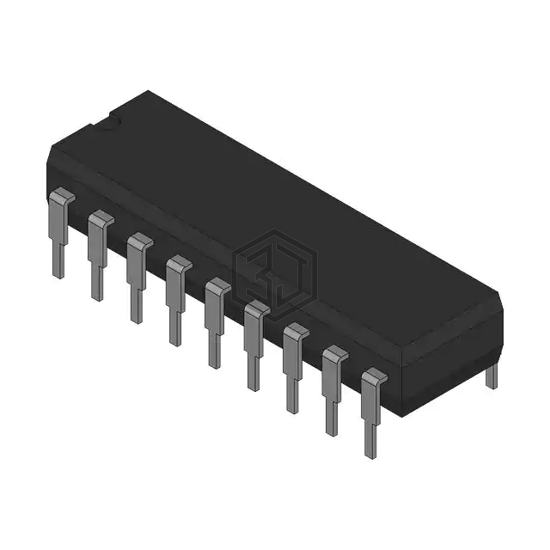

DAC7541AJP is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Burr Brown. DAC, PARALLEL, WORD INPUT. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V ~ 16V, package / case 18-DIP (0.300", 7.62mm).
In Stock: 6,038
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 1µs |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 5V ~ 16V |
| Voltage - Supply, Digital | 5V ~ 16V |
| INL/DNL (LSB) | ±1, ±1 |
| Architecture | Multiplying DAC, R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP |
| Mounting Type | Through Hole |
DAC7541AJP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC7543GKN#PBF | Analog Devices Inc. | IC DAC 12BIT A-OUT 16DIP | 100% | View |
| AD7545AKNZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 20DIP | 100% | View |
| LTC7543KN#PBF | Analog Devices Inc. | IC DAC 12BIT A-OUT 16DIP | 100% | View |
| PM7542AQ | Analog Devices Inc. | M-PROC COMPATIBLE 12-BIT DAC | 99% | View |
| LTC1599BCN#PBF | Analog Devices Inc. | IC DAC 16BIT A-OUT 24DIP | 97% | View |
| DAC8222FW | Analog Devices Inc. | DUAL 12-BIT MULTIPLYING DAC | 92% | View |
Submit your RFQ for DAC7541AJP and get a quote within 24 hours.
