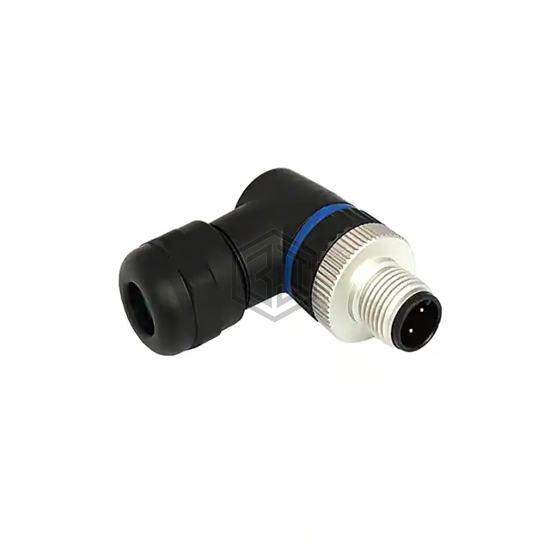

CONN RCPT MALE 4POS GOLD SCREW
PXPPAM12RAM04ASTPG9 is a Circular Connectors manufactured by Bulgin. CONN RCPT MALE 4POS GOLD SCREW. Key specifications: mounting type Free Hanging (In-Line), Right Angle, operating temperature -25°C ~ 80°C, voltage rating 250V, color Black, Silver.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 4 |
| Shell Size - Insert | M12-4 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - |
| Termination | Screw |
| Fastening Type | Threaded |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell |
| Shielding | - |
| Current Rating (Amps) | 4A |
| Voltage Rating | 250V |
| Cable Opening | 0.181" ~ 0.315" (4.60mm ~ 8.00mm) |
| Operating Temperature | -25°C ~ 80°C |
Submit your RFQ for PXPPAM12RAM04ASTPG9 and get a quote within 24 hours.
