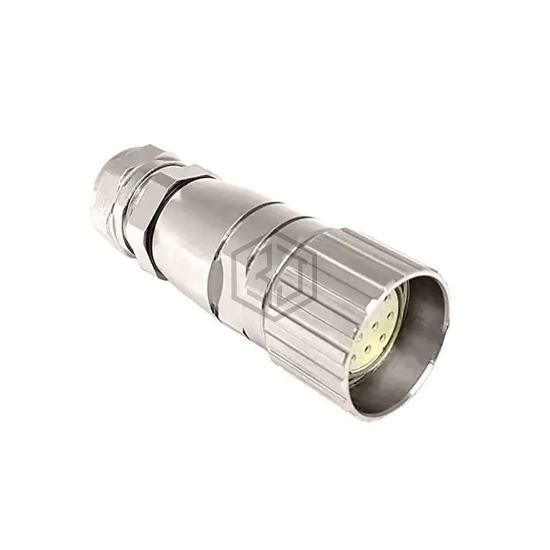

CONN PLUG FMALE 19P SOLDER CUP
PXMBNI23FBF19ASCPG9 is a Circular Connectors manufactured by Bulgin. CONN PLUG FMALE 19P SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 80°C, voltage rating 150VAC/DC, color Silver.
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 19 |
| Shell Size - Insert | M23-19 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell, Coupling Nut |
| Shielding | - |
| Current Rating (Amps) | 8A |
| Voltage Rating | 150VAC/DC |
| Cable Opening | 0.236" ~ 0.315" (6.00mm ~ 8.00mm) |
| Operating Temperature | -25°C ~ 80°C |
Submit your RFQ for PXMBNI23FBF19ASCPG9 and get a quote within 24 hours.
