SWITCH PUSH SPST-NO 0.05A 24V

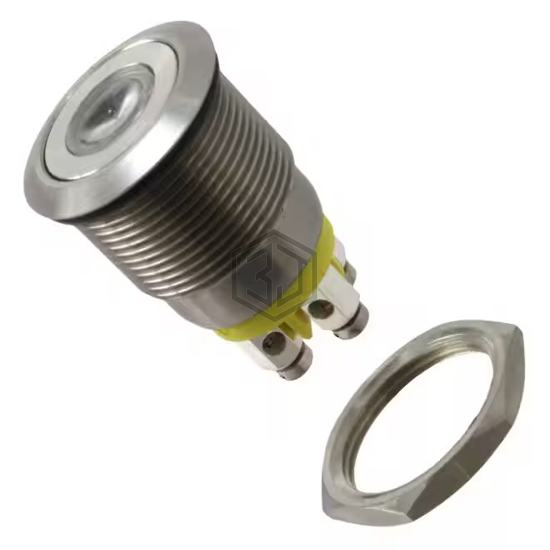

MPI001/TERM/AM is a Pushbutton Switches manufactured by Bulgin. SWITCH PUSH SPST-NO 0.05A 24V. Key specifications: mounting type Panel Mount, Front, operating temperature -30°C ~ 70°C, voltage rating - dc 24 V, current rating (amps) 50mA (DC).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 50mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 24 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Amber |
| Illumination Voltage (Nominal) | 2.3 VDC |
| Termination Style | Screw Terminal |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Features | Stainless Steel |
| Panel Cutout Dimensions | Circular - 19.20mm Dia |
| Operating Temperature | -30°C ~ 70°C |
Submit your RFQ for MPI001/TERM/AM and get a quote within 24 hours.
