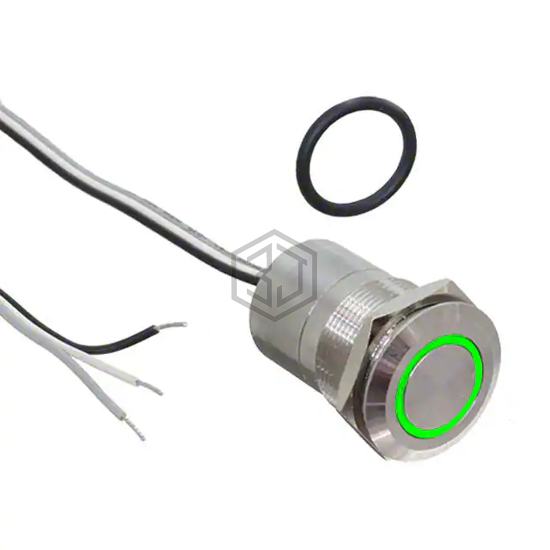

SW CAPACITIVE SPST-NC 10MA 12V
MC22MCSGR is a Pushbutton Switches manufactured by Bulgin. SW CAPACITIVE SPST-NC 10MA 12V. Key specifications: mounting type Panel Mount, Front, operating temperature -25°C ~ 55°C, voltage rating - dc 12 V, current rating (amps) 500mA (DC).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Capacitive, Illuminated |
| Circuit | SPST-NC |
| Switch Function | On-Mom |
| Current Rating (Amps) | 500mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 12 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Green/Red |
| Illumination Voltage (Nominal) | - |
| Termination Style | Wire Leads |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 22.20mm Dia |
| Operating Temperature | -25°C ~ 55°C |
Submit your RFQ for MC22MCSGR and get a quote within 24 hours.
