CONN HEADER R/A 5POS 2.54MM

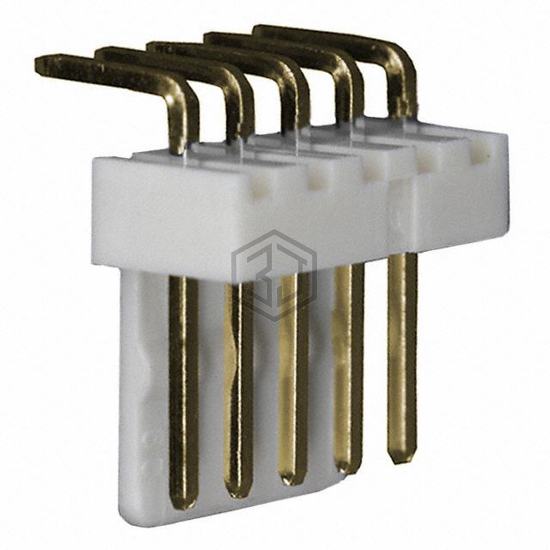

14192 is a Rectangular Connectors - Headers, Male Pins manufactured by Bulgin. CONN HEADER R/A 5POS 2.54MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature 0°C ~ 70°C, contact material Copper Alloy, current rating (amps) 1A.
In Stock: 2,485
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.250" (6.35mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | - |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | White |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
