LED GREEN DIFFUSED SMD

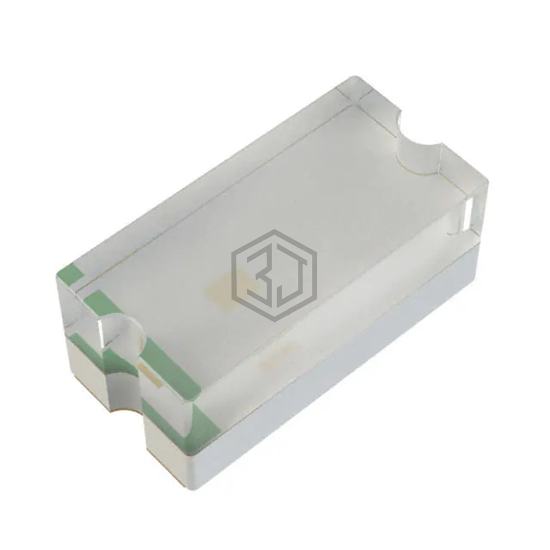

HSMQ-C280 is a LED Indication - Discrete manufactured by Broadcom Limited. LED GREEN DIFFUSED SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.3V, package / case 0402 (1005 Metric), color Green.
In Stock: 2,624
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green |
| Configuration | Standard |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 223mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.50mm |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 522nm |
| Wavelength - Peak | 516nm |
| Features | - |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 1.00mm L x 0.50mm W |
| Height (Max) | 0.50mm |
Submit your RFQ for HSMQ-C280 and get a quote within 24 hours.
