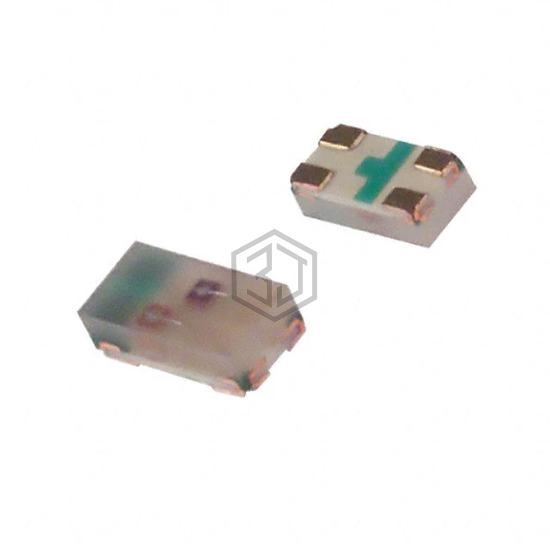

LED AMBER/BLUE DIFFUSED 0603 SMD
HSMF-C169 is a LED Indication - Discrete manufactured by Broadcom Limited. LED AMBER/BLUE DIFFUSED 0603 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.9V Amber, 3.4V Blue, package / case 0603 (1608 Metric), color Amber, Blue.
In Stock: 14,514
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Amber, Blue |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 90mcd Amber, 10mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Amber, 3.4V Blue |
| Current - Test | 20mA Amber, 10mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 592nm Amber, 470nm Blue |
| Wavelength - Peak | 595nm Amber, 468nm Blue |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.50mm |
Submit your RFQ for HSMF-C169 and get a quote within 24 hours.
