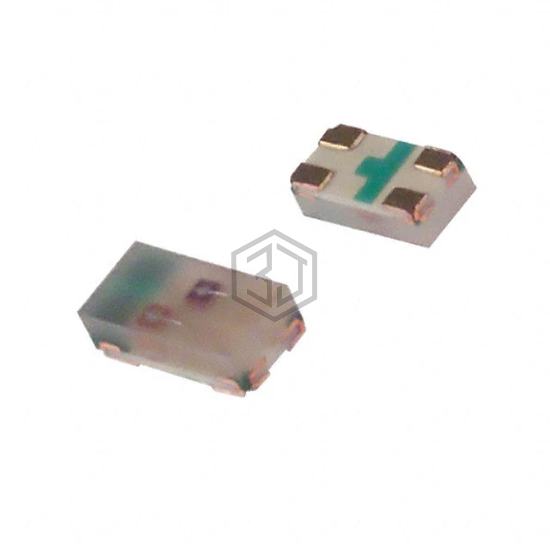

LED GRN/YELLOW DIFFUSED 0603 SMD
HSMF-C166 is a LED Indication - Discrete manufactured by Broadcom Limited. LED GRN/YELLOW DIFFUSED 0603 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Green, 2.1V Yellow, package / case 0603 (1608 Metric), color Green, Yellow.
In Stock: 182,628
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Yellow |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 15mcd Green, 8mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 572nm Green, 586nm Yellow |
| Wavelength - Peak | 570nm Green, 589nm Yellow |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.50mm |
