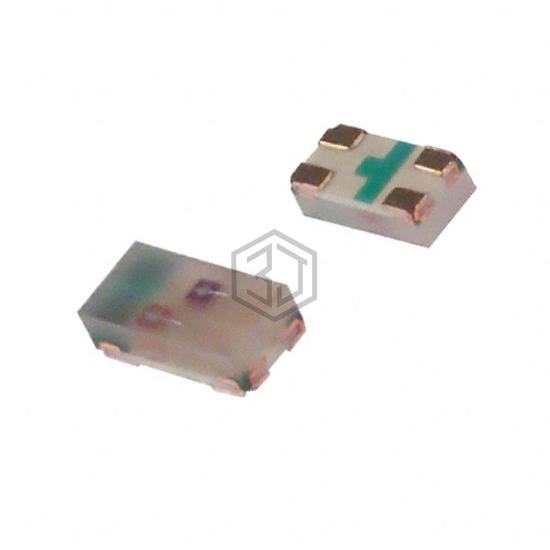

LED AMBER/RED DIFFUSED 0603 SMD
HSMF-C162 is a LED Indication - Discrete manufactured by Broadcom Limited. LED AMBER/RED DIFFUSED 0603 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.9V Amber, 1.9V Red, package / case 0603 (1608 Metric), color Amber, Red.
In Stock: 9,465
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Amber, Red |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 90mcd Amber, 90mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Amber, 1.9V Red |
| Current - Test | 20mA Amber, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 592nm Amber, 626nm Red |
| Wavelength - Peak | 595nm Amber, 637nm Red |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.50mm |
Submit your RFQ for HSMF-C162 and get a quote within 24 hours.
