LED AMBER/GREEN DIFF CHIP SMD

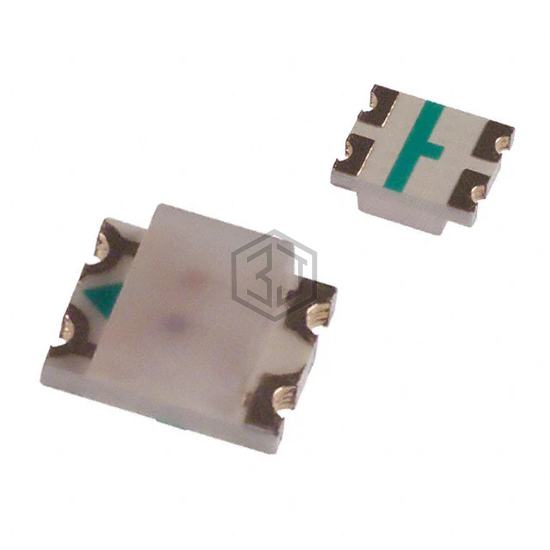

HSMF-C158 is a LED Indication - Discrete manufactured by Broadcom Limited. LED AMBER/GREEN DIFF CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.9V Amber, 2.1V Green, package / case 1210 (3225 Metric), color Amber, Green.
In Stock: 7,784
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Amber, Green |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 55mcd Amber, 45mcd Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.06mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Amber, 2.1V Green |
| Current - Test | 20mA Amber, 20mA Green |
| Viewing Angle | 170° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 592nm Amber, 572nm Green |
| Wavelength - Peak | 595nm Amber, 570nm Green |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
